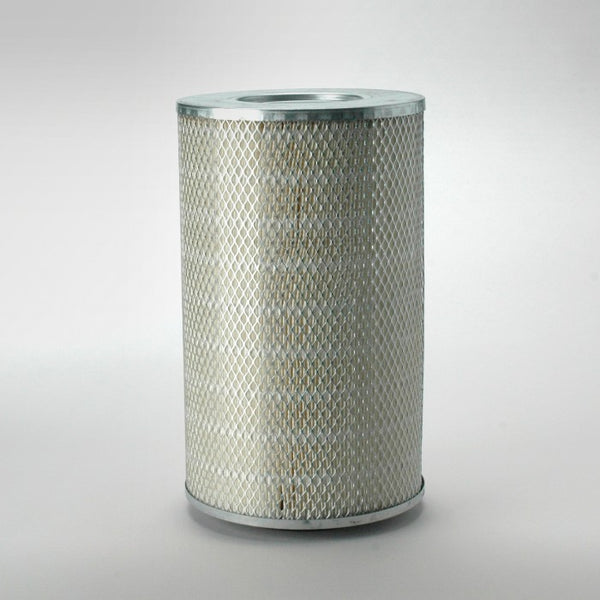

97-22-0500 |

Lead Time: Usually ships in 24-48 hours

Performance Data
Micron Rating:  15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  8.94 IN   (227.08 MM)

Outer Diameter, Bottom:  8.94 IN   (227.08 MM)

Inner Diameter, Top:  0.44 IN   (11.18 MM)

Inner Diameter, Bottom:  4.63 IN   (117.60 MM)

Length:  15.00 IN   (381.00 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  POLYVINYLCHLORIDE

Type of Endcap:  PLATED STEEL

Center Tube:  EXPANDED METAL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES

Configuration:  SINGLE W/BOLT HOLE

Packaging Specifications
Number per Carton:  1

Carton Weight:  7.00 LB   (3.18 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacturer parts, Names and part # used for cross reference only.**
