0030 D 010 BN4HC | Hydac | Hycon

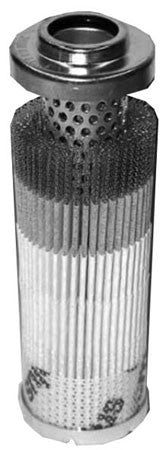

***Image may vary***

0030 D 010 BN4HC | Hydac | Hycon | OFS # 97-05-0059

  • $53.50


5 week lead time

please email for updated lead time and pricing

PERFORMANCE DATA

Micron Rating:  12.00 ABSOLUTE
Beta Rating:  B12 = 200
Collapse Pressure Rating:  250 PSI
Maximum Temperature:  225 F
Direction of Flow:  OUTSIDE->IN
Recommended Changeout Differential Pressure:  50 PSID
Additional Notes:  REPLACMENT FOR HYCON MODEL NUMBER 0030D010BN/HC.

DIMENSIONAL SPECIFICATIONS

(A) Outer Diameter, Top:  1.38 IN   (35.05 MM)
(B) Outer Diameter, Bottom:  1.38 IN   (35.05 MM)
(C) Inner Diameter, Top:  0.50 IN   (12.70 MM)
(D) Inner Diameter, Bottom:
(E) Length:  3.63 IN   (92.20 MM)
(F) Thread:  NONE

PHYSICAL SPECIFICATIONS

Handle:  NONE
Seal Material:  BUNA-N
Type of Adhesive:  EPOXY
Type of Endcap:  PLATED STEEL
Center Tube:  PLATED STEEL
Type of Media:  MICROGLASS
Filter Area:  SQ.IN.
Plating:  ZINC PLATED
Outer Jacket:  NONE - NONE
Configuration:  SINGLE OPEN END

PACKAGING SPECIFICATIONS

Number per Carton:  1
Carton Weight:  0.20 LB   (0.09 KG)
