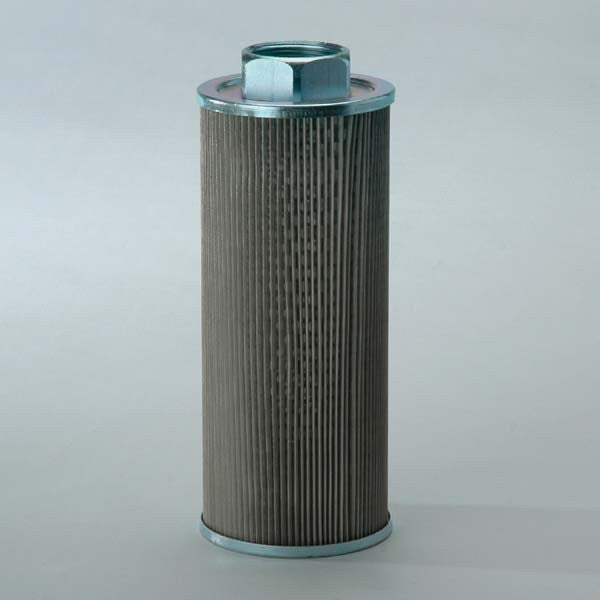

P173914 | Donaldson | Suction Strainer | OFS # 97-28-5828
Please Call For Availability
Performance Data
Micron Rating: 149.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.94 IN (100.08 MM)
Outer Diameter, Bottom:
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 9.85 IN (250.19 MM)
Thread: 1 1/2" NPT
Physical Specifications
Handle: NONE
Seal Material: NONE
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.80 LB (0.82 KG)
OFS # 97-28-5828 | Replacement For Donaldson | P173914 | Suction Strainer
