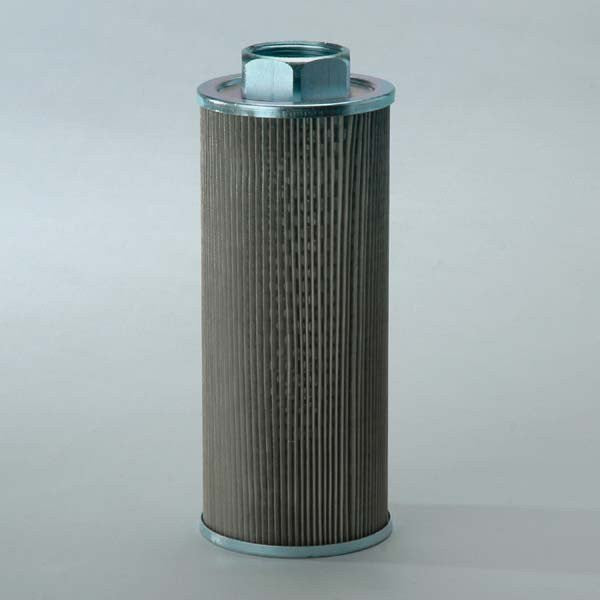

97-28-5828 | Suction Strainer Replacement

Online Filter Supply Number | 97-28-5828 | Suction Strainer Replacement | For | Donaldson | P173914 | All Of Our Products Meet Or Exceed Donaldson Specifications & Quality |  Please Call For Availability

 Click here if you are looking for the original Donaldson | P173914 | Suction Strainer |

Performance Data

Micron Rating:  149.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.94 IN   (100.08 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  9.85 IN   (250.19 MM)

Thread:  1 1/2" NPT

Physical Specifications
Handle:  NONE

Seal Material:  NONE

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  STEEL

Type of Media:  304 SS WIRE

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.80 LB   (0.82 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable with original manufacture parts, Names and part # used for cross reference only.**
