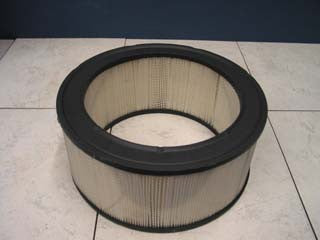

PPP524368 | DONALDSON | Intake Air Filter Element
***Image may vary***

PPP524368 | Donaldson | OFS # 97-22-0710

  • $27.14


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 11.56 IN (293.62 MM)

Outer Diameter, Bottom: 11.56 IN (293.62 MM)

Inner Diameter, Top: 8.28 IN (210.31 MM)

Inner Diameter, Bottom: 8.28 IN (210.31 MM)

Length: 5.00 IN (127.00 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: MOLDED

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.47 LB (1.12 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
