P771549 | Donaldson | OFS # 97-22-1263
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 7.09 IN (180.09 MM)
Outer Diameter, Bottom: 6.42 IN (163.07 MM)
Inner Diameter, Top:
Inner Diameter, Bottom: 2.84 IN (72.14 MM)
Length: 11.91 IN (302.51 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE / COVER & FIN
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.10 LB (1.41 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

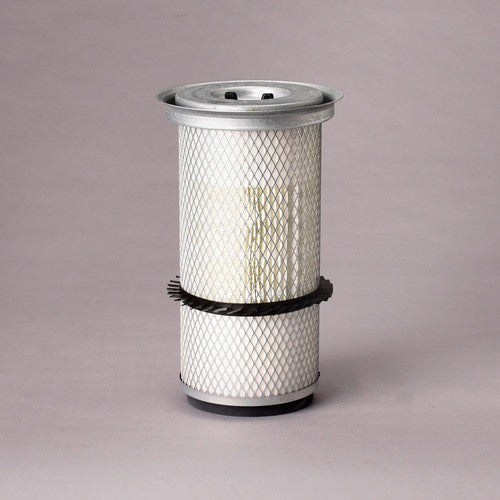

Intake Air Filter Element
