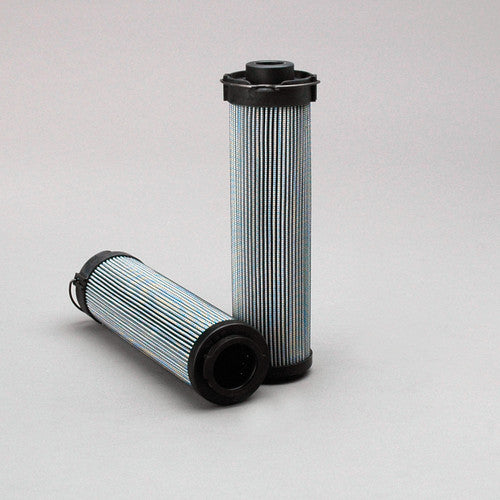

P564859 | DONALDSON | Pleated Microglass Filter Element
***Image may vary***

P564859 | Donaldson | OFS # 97-309117

  • $53.94


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10=200

Collapse Pressure Rating: N/A

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN



Dimensional Specifications
Outer Diameter, Top: 2.25 IN (57.15 MM)

Outer Diameter, Bottom: 2.25 IN (57.15 MM)

Inner Diameter, Top: 1.38 IN (35.05 MM)

Inner Diameter, Bottom:

Length: 9.00 IN (228.60 MM)

Thread: N/A



Physical Specifications
Handle: NONE

Seal Material: BUNA

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: N/A

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
