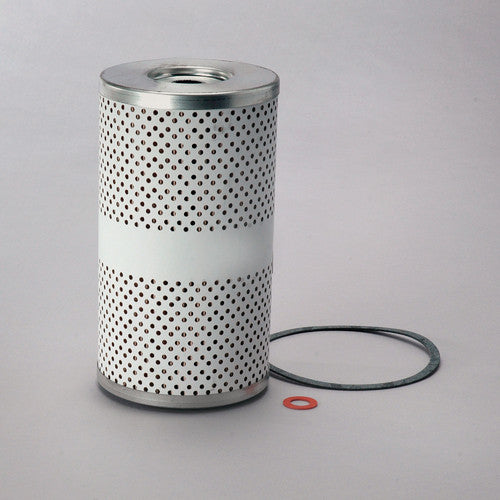

FFP170624 | DONALDSON | Pleated Paper Filter Element
***Image may vary***

FFP170624 | Donaldson | OFS # 97-01-0892

  • $24.91

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.33 IN (109.98 MM)

Outer Diameter, Bottom: 4.33 IN (109.98 MM)

Inner Diameter, Top: 0.68 IN (17.27 MM)

Inner Diameter, Bottom: 0.68 IN (17.27 MM)

Length: 8.69 IN (220.73 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.


Outer Jacket: YES

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.33 LB (0.60 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
