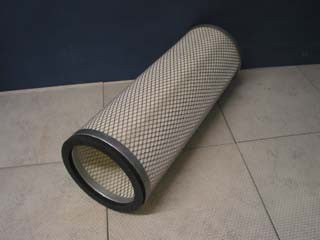

CD1422610827 - AIR MAZE - OFS # 97-22-0021
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 6.88 IN (174.75 MM)
Outer Diameter, Bottom: 6.88 IN (174.75 MM)
Inner Diameter, Top: 5.50 IN (139.70 MM)
Inner Diameter, Bottom: 0.44 IN (11.18 MM)
Length: 19.25 IN (488.95 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: **All Online Filter Supply replacement parts are"equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
