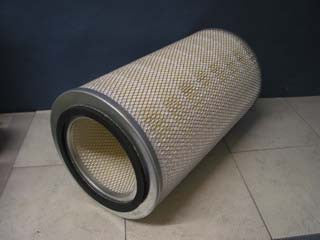

CD1422610826 - AIR MAZE - OFS # 97-22-0020
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 11.50 IN (292.10 MM)
Outer Diameter, Bottom: 11.50 IN (292.10 MM)
Inner Diameter, Top: 7.00 IN (177.80 MM)
Inner Diameter, Bottom: 0.44 IN (11.18 MM)
Length: 20.50 IN (520.70 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES - METAL
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: 8.00 LB (3.63 KG) **All Online Filter Supply replacement parts are"equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
