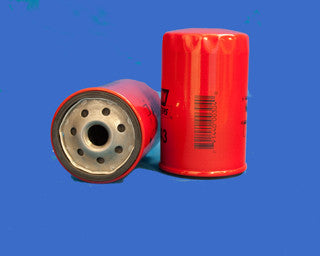

B243 - BALDWIN   - Online Filter Supply Replacement Part # 97-25-0365
***Image may vary***

B243 - BALDWIN - OFS # 97-25-0365

  • $11.02

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating:  20.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  100 PSI

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.06 IN   (77.72 MM)

Outer Diameter, Bottom:  3.06 IN   (77.72 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  4.84 IN   (122.94 MM)

Thread:  3/4-16 UNF2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.


Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  9.90 LB   (4.49 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangable" with original manufacture parts, Names and part # used for cross reference only.**
