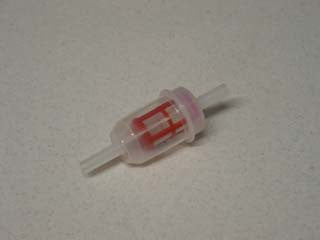

125-64 - ARGO FILTER - OFS # 97-28-0570

AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 45.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 1.94 IN (49.28 MM)

Outer Diameter, Bottom:

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 3.86 IN (98.04 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive: N/A OUTLET CONN .25

Type of Endcap: PLATED STEEL

Center Tube:

Type of Media: NYLON

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: N/A INLET CONN .25

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are"equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
