05-0111 | Filter-Mart Corp | Pleated Micro-Glass Element

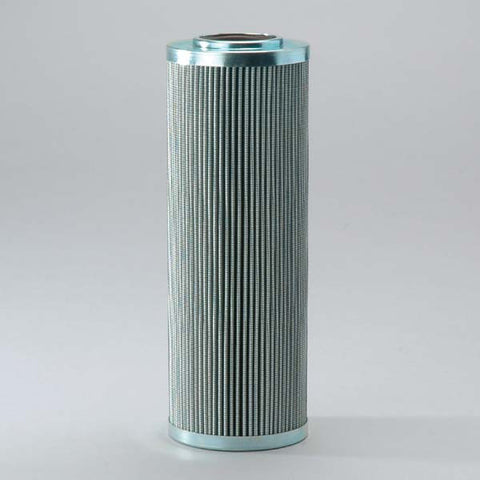

Pleated Micro-Glass Filter Element

UsuallyShips In 24-48 Hours

Performance Data

Micron Rating:  25.00 ABSOLUTE

Beta Rating:  B25=200

Collapse Pressure Rating:  100 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  3.60 IN (91.44 MM)

Outer Diameter, Bottom:  3.60 IN (91.44 MM)

Inner Diameter, Top:  1.90 IN (48.26 MM)

Inner Diameter, Bottom: N/A

Length:  6.50 IN (165.10 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  VITON

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  3.00 LB  (1.36 KG)

**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
