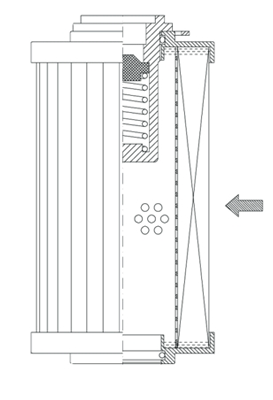

R18C10CB | WIX | Pleated Microglass Element | OFS # 97-05-1210

Lead Time: Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 0.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 2.73 IN (69.34 MM)

Outer Diameter, Bottom: 2.73 IN (69.34 MM)

Inner Diameter, Top: 1.13 IN (28.70 MM)

Inner Diameter, Bottom:

Length: 5.10 IN (129.54 MM)

Thread:

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: NONE

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.00 LB (0.45 KG)

***Online Filter Supply, Requires A Minimum Order Amount Of $25.00 On All Orders***

*** All Of Online Filter Supply , Replacement Filters Meet Or Exceed The Overall Quaility Of The Original Equipment Manufacturer And Can Be Used As Direct Replacements***
