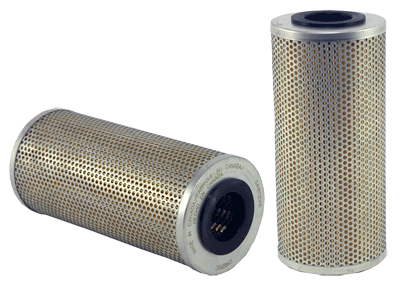

D96B10C | WIX | Pleated Paper Element | OFS # 97-40-0352
PLEATED PAPER ELEMENT
Performance Data
Micron Rating: 10.00
Beta Rating: N/A
Collapse Pressure Rating: 145 PSI
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Dimensional Specifications
Outer Diameter, Top: 3.90 IN (99.06 MM)
Outer Diameter, Bottom: 3.90 IN (99.06 MM)
Inner Diameter, Top: 1.61 IN (40.89 MM)
Inner Diameter, Bottom: 1.61 IN (40.89 MM)
Length: 8.58 IN (217.93 MM)
Thread: N/A
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: 781 SQ.IN.
Plating: N/A
Outer Jacket: NONE - PERFORATED
Configuration: DOUBLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight:
