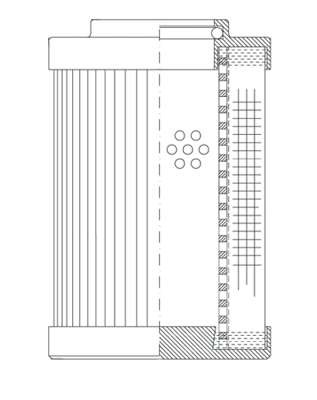

D45B03HV | WIX | OFS # 97-05-0104

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: B3=200

Collapse Pressure Rating: 3000 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 50 PSID

Dimensional Specifications
Outer Diameter, Top: 3.13 IN (79.50 MM)

Outer Diameter, Bottom: 3.13 IN (79.50 MM)

Inner Diameter, Top: 1.88 IN (47.75 MM)

Inner Diameter, Bottom:

Length: 13.00 IN (330.20 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ZINC PLATED

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 5.00 LB (2.27 KG)
