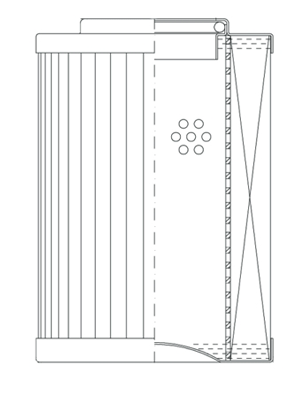

D44B10GV | WIX | OFS # 97-05-3488

Lead Time: Please Call

Performance Data
Micron Rating: 10.00 ABSOLUTE

Beta Rating: B10=200

Collapse Pressure Rating: 435 PSI

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 2.12 IN (53.85 MM)

Outer Diameter, Bottom: 2.12 IN (53.85 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom:

Length: 4.65 IN (118.11 MM)

Thread: N/A

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: 153 SQ.IN.

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight:
