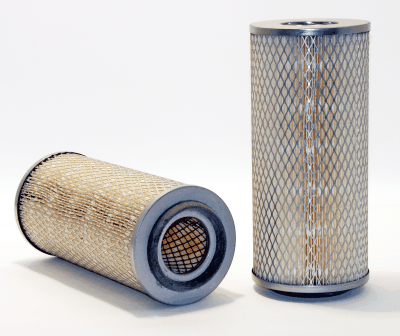

A150 | WIX | OFS # 97-22-1061

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 300 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 5.88 IN (149.35 MM)

Outer Diameter, Bottom:

Inner Diameter, Top: 0.44 IN (11.18 MM)

Inner Diameter, Bottom: 2.81 IN (71.37 MM)

Length: 13.25 IN (336.55 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration:

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.80 LB (1.27 KG)
