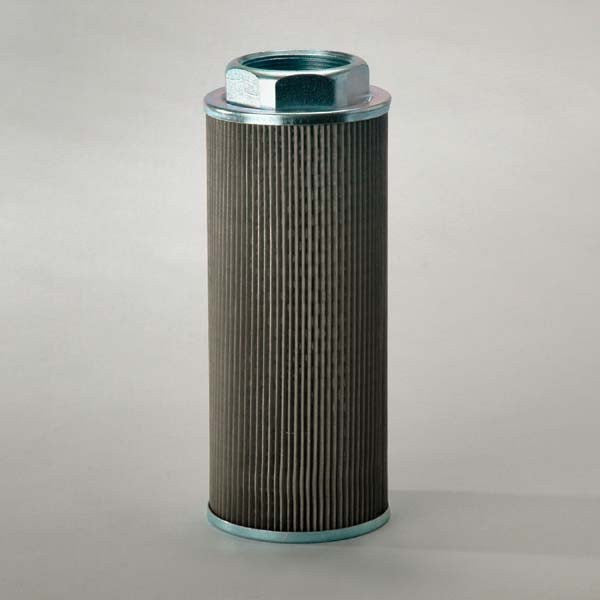

57453 | WIX | Suction Strainer | OFS # 97-09-0116

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 149.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: 100 MESH

Dimensional Specifications
Outer Diameter, Top: 4.00 IN (101.60 MM)

Outer Diameter, Bottom: 4.00 IN (101.60 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 9.63 IN (244.60 MM)

Thread: 2"

Physical Specifications
Handle: NONE

Seal Material: NONE

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: 304 SS WIRE

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG)
