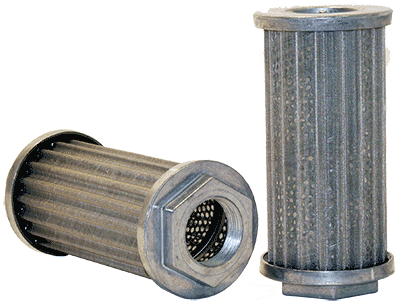

57451 | WIX | Pleated Wire Element | OFS # 97-06-0779
PLEATED WIRE ELEMENT
Lead Time: Usually Ships In 24-28 Hours
Performance Data
Micron Rating: 140.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 25 PSID
Dimensional Specifications
Outer Diameter, Top: 3.38 IN (85.85 MM)
Outer Diameter, Bottom: 3.38 IN (85.85 MM)
Inner Diameter, Top: 1.51 IN (38.35 MM)
Inner Diameter, Bottom:
Length: 6.85 IN (173.99 MM)
Thread: 1-1/4 NPT
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating:
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight:
