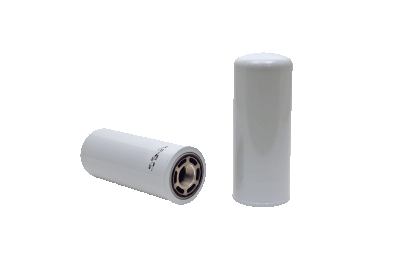

57275 | WIX | Hydraulic Spin-On Filter Element | OFS # 97-37-1519
Spin-On Filter Element
Performance Data
Micron Rating: 10.00
Beta Rating: N/A
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 5.15 IN (130.81 MM)
Outer Diameter, Bottom: 5.15 IN (130.81 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 12.05 IN (306.07 MM)
Thread: 1-3/4-12
Physical Specifications
Handle: NONE
Seal Material: BUNA
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: WATER REMOVAL
Filter Area: N/A
Plating: N/A
Outer Jacket: NONE
Configuration: SINGLE OPEN/SPIN ON
Packaging Specifications
Number per Carton: 1
Carton Weight: 3.60 LB (1.63 KG)
