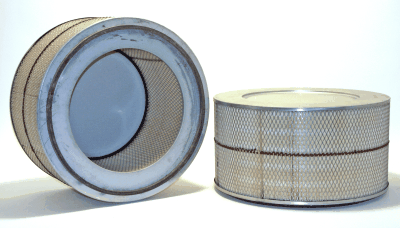

546352 | WIX | OFS # 97-22-0585

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 19.25 IN (488.95 MM)

Outer Diameter, Bottom: 19.25 IN (488.95 MM)

Inner Diameter, Top: 12.88 IN (327.15 MM)

Inner Diameter, Bottom:

Length: 9.94 IN (252.48 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: N/A

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: 145 SQ.FT.

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 16.00 LB (7.26 KG)
