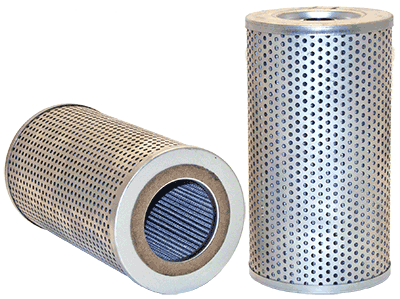

51559 | WIX | Pleated Paper Element | OFS # 97-01-0337

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.39 IN (111.51 MM)

Outer Diameter, Bottom: 4.39 IN (111.51 MM)

Inner Diameter, Top: 2.44 IN (61.98 MM)

Inner Diameter, Bottom:

Length: 8.00 IN (203.20 MM)

Thread: NONE

Physical Specifications
Handle: YES

Seal Material: NONE

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 2.10 LB (0.95 KG)
