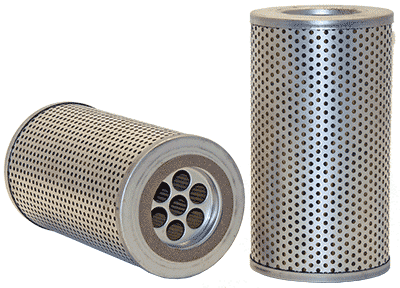

51532 | WIX | Pleated Paper Element Kit | OFS # 97-01-0296

Lead Time: Usually Ships In 24-28 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: INSIDE->OUT

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: * CLOSED END HAS BOLT HOLE.

Dimensional Specifications
Outer Diameter, Top: 4.38 IN (111.25 MM)

Outer Diameter, Bottom: 4.38 IN (111.25 MM)

Inner Diameter, Top: 2.44 IN (61.98 MM)

Inner Diameter, Bottom: 0.64 IN (16.26 MM)

Length: 8.00 IN (203.20 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: FIBER

Type of Adhesive: POLYVINYLCHLORIDE

Type of Endcap: PLATED STEEL

Center Tube: NONE

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.50 LB (0.68 KG)
