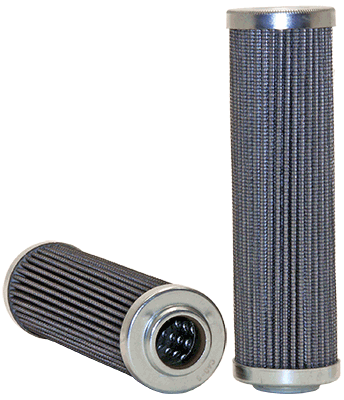

QH110DM74VA| Quality Filtrati | Pleated Wire Element | OFS # 97-06-0205
Performance Data
Micron Rating: 74.00
Beta Rating: B25 = 200
Collapse Pressure Rating: 3000 PSID
Maximum Temperature: 250 F
Direction of Flow: OUT-IN
Recommended Changeout Differential Pressure: 25 PSID
Dimensional Specifications
Outer Diameter, Top: 1.88 IN (47.75 MM)
Outer Diameter, Bottom: 1.88 IN (47.75 MM)
Inner Diameter, Top: 0.88 IN (22.35 MM)
Inner Diameter, Bottom:
Length: 6.00 IN (152.40 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: 304 SS WIRE
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration:
Packaging Specifications
Number per Carton: 1
Carton Weight: ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
