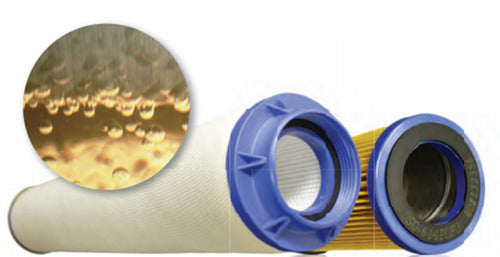

DI-638D4TB | VELCON | OFS # 97-16-0266

2-3 WEEK LEAD TIME

Performance Data
Micron Rating: 4.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Dimensional Specifications
Outer Diameter, Top: 6.00 IN (152.40 MM)

Outer Diameter, Bottom: 6.00 IN (152.40 MM)

Inner Diameter, Top: 3.25 IN (82.55 MM)

Inner Diameter, Bottom:

Length: 39.00 IN (990.60 MM)

Thread: 3.25" FEMALE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: GLASS FILLED NYLON

Center Tube: NONE

Type of Media: PAPER/GLASS

Filter Area: 9000 SQ.IN.

Plating: NONE

Outer Jacket: YES - SOCK

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 4

Carton Weight: 42.00 LB (19.05 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
