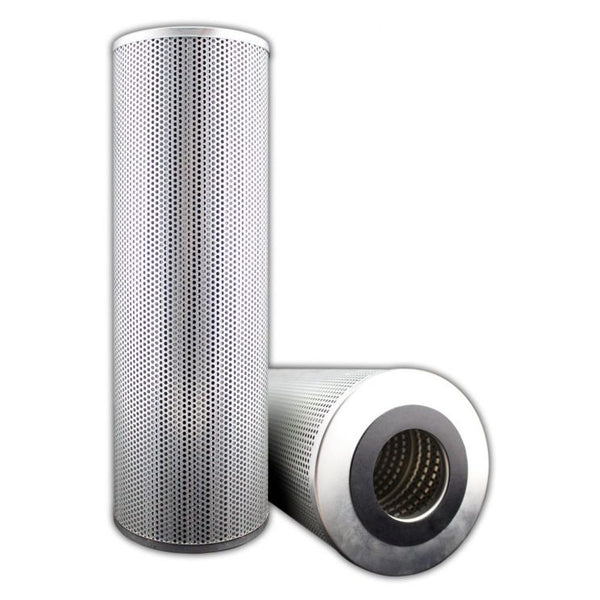

AC71805 | VELCON | OFS # 97-03-0007
***Image may vary***

AC71805 | VELCON | OFS # 97-03-0007

  • $74.10


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 5.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 100 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 25 PSID

Additional Notes: REPLACES KAYDON # KD6018-6NS, VELCON AC71805



Dimensional Specifications
Outer Diameter, Top: 6.25 IN (158.75 MM)

Outer Diameter, Bottom: 6.25 IN (158.75 MM)

Inner Diameter, Top: 2.63 IN (66.80 MM)

Inner Diameter, Bottom: 2.63 IN (66.80 MM)

Length: 18.00 IN (457.20 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER/CHEM

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - SCREEN

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 6

Carton Weight: 30.00 LB (13.61 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
