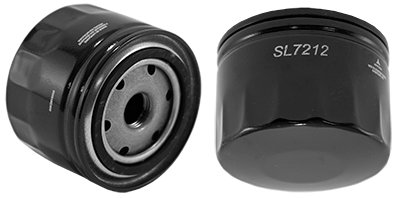

R192| Technocar | Spin-On Element OFS # 97-15-2543

SPIN-ON ELEMENT Spin-On Element Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A BPV 17.40

Collapse Pressure Rating:

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.68 IN   (93.47 MM)

Outer Diameter, Bottom:  3.68 IN   (93.47 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length:  3.62 IN   (91.95 MM)

Thread:  13/16-16UN2B

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight:  13.80 LB   (6.26 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
