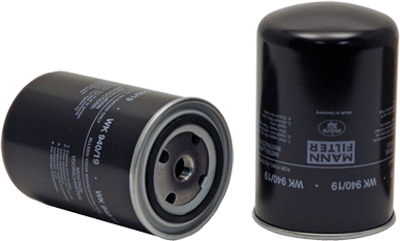

Q15H4117| Deutz | OFS # 97-28-0897
Performance Data
Micron Rating: 15.00
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.68 IN (93.47 MM)
Outer Diameter, Bottom: 3.68 IN (93.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 5.59 IN (141.99 MM)
Thread: M16X1.5H INT
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN ENDS
Packaging Specifications
Number per Carton: 12
Carton Weight: 13.20 LB (5.99 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
