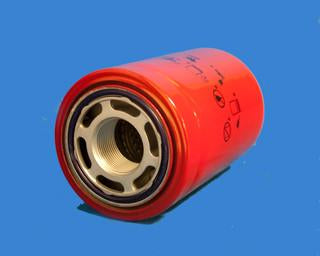

551457 | WIX | Spin-On Element | OFS # 97-28-0198
***Image may vary***

551457 | WIX | OFS # 97-28-0198

  • $64.00


2 WEEK LEAD TIME

SPIN-ON-ELEMENT

Performance Data
Micron Rating: 5.00 ABSOLUTE

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.95 IN (100.33 MM)

Outer Diameter, Bottom: 3.95 IN (100.33 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 6.05 IN (153.67 MM)

Thread: 1 3/8-12 UNF2



Physical Specifications
Handle: NONE

Seal Material:

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.00 LB (1.36 KG)
