0080MA03BN - HYCON/HYDAC   - Online Filter Supply Replacement Part # 97-25-0330

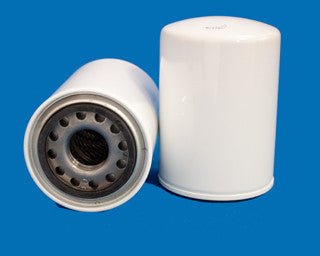

***Image may vary***

0080MA03BN - HYCON/HYDAC - OFS # 97-25-0330

  • $24.24


AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 3.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 100 PSI

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)

Outer Diameter, Bottom: 3.70 IN (93.98 MM)

Inner Diameter, Top:

Inner Diameter, Bottom:

Length: 5.25 IN (133.35 MM)

Thread: 1"-12 UNF



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: MICROGLASS

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 12

Carton Weight: 23.00 LB (10.43 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
