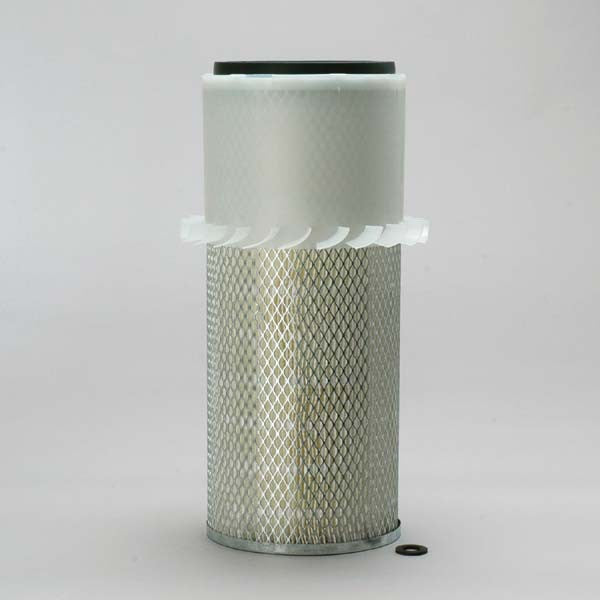

E70211803 | Saxby-Tracma | Intake Air Filter Element
***Image may vary***

E70211803 | Saxby-Tracma | OFS # 97-22-1240

  • $44.60


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 8.88 IN (225.55 MM)

Outer Diameter, Bottom: 6.85 IN (173.99 MM)

Inner Diameter, Top: 4.23 IN (107.44 MM)

Inner Diameter, Bottom: 0.67 IN (17.02 MM)

Length: 16.58 IN (421.13 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive:

Type of Endcap: PLATED STEEL

Center Tube: STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating:

Outer Jacket: YES

Configuration: SINGLE/FIN/BOLT HOLE



Packaging Specifications
Number per Carton: 1

Carton Weight: 3.80 LB (1.72 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
