E70211003 | Saxby-Tracma | OFS # 97-22-0417
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: NOT RATED
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 12.08 IN (306.83 MM)
Outer Diameter, Bottom: 12.08 IN (306.83 MM)
Inner Diameter, Top: 0.67 IN (17.02 MM)
Inner Diameter, Bottom: 7.73 IN (196.34 MM)
Length: 18.49 IN (469.65 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END/BH
Packaging Specifications
Number per Carton: 1
Carton Weight: 9.00 LB (4.08 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

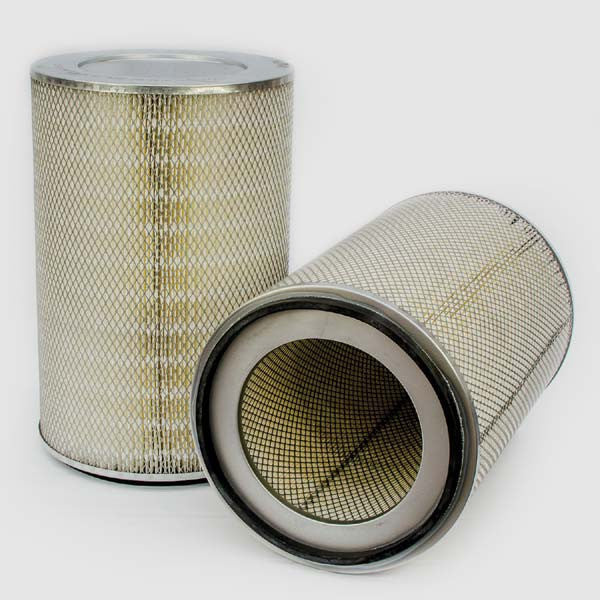

Intake Air Filter Element
