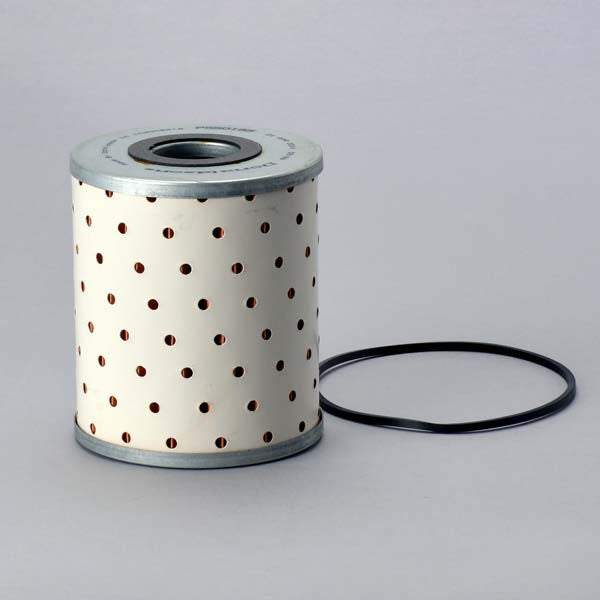

L178 | Purflux | Pleated Paper Filter Element
***Image may vary***

L178 | Purflux | OFS # 97-01-0901

  • $10.10


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 3.85 IN (97.79 MM)

Outer Diameter, Bottom: 3.85 IN (97.79 MM)

Inner Diameter, Top: 1.32 IN (33.53 MM)

Inner Diameter, Bottom: 1.32 IN (33.53 MM)

Length: 4.53 IN (115.06 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 0.58 LB (0.26 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
