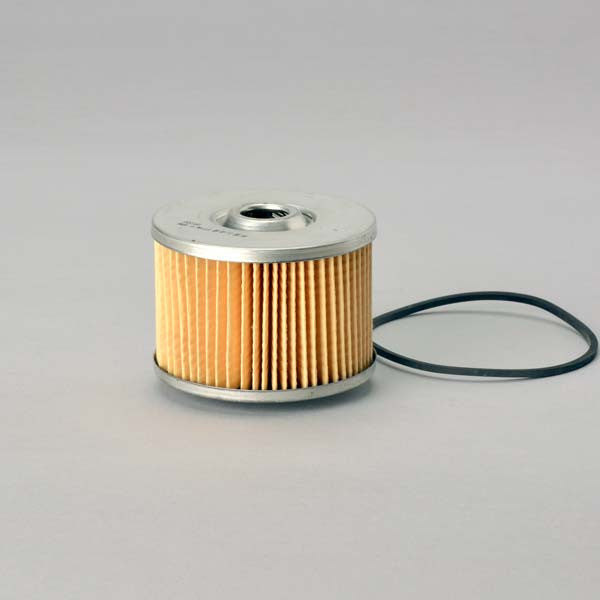

C124 | Purflux | Pleated Paper Filter Element
***Image may vary***

C124 | Purflux | OFS # 97-01-0891

  • $10.40


Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  0.00 NOMINAL

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID



Dimensional Specifications
Outer Diameter, Top:  3.50 IN   (88.90 MM)

Outer Diameter, Bottom:  3.47 IN   (88.14 MM)

Inner Diameter, Top:  0.75 IN   (19.05 MM)

Inner Diameter, Bottom:  0.75 IN   (19.05 MM)

Length:  2.75 IN   (69.85 MM)

Thread:  NONE



Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END



Packaging Specifications
Number per Carton:  1

Carton Weight:  0.46 LB   (0.21 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
