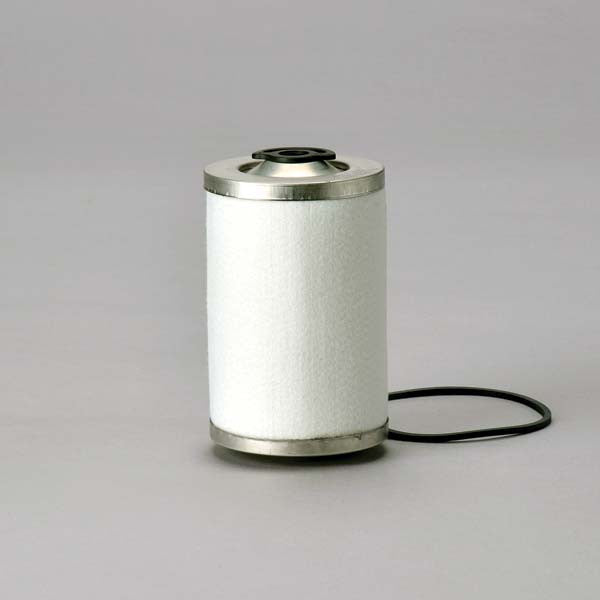

C106 | Purflux | OFS # 97-01-0870

Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 3.28 IN (83.31 MM)

Outer Diameter, Bottom: 3.28 IN (83.31 MM)

Inner Diameter, Top: 0.54 IN (13.72 MM)

Inner Diameter, Bottom: 0.54 IN (13.72 MM)

Length: 5.71 IN (145.03 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: GROMMET

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: ELECTROTIN PLATED

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 0.43 LB (0.20 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
