A877 | Purflux | OFS # 97-22-0695
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature:
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.76 IN (120.90 MM)
Outer Diameter, Bottom: 4.49 IN (114.05 MM)
Inner Diameter, Top: 3.92 IN (99.57 MM)
Inner Diameter, Bottom: 0.67 IN (17.02 MM)
Length: 14.96 IN (379.98 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: STEEL
Type of Media: FELT
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE W BOLT HOLE
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

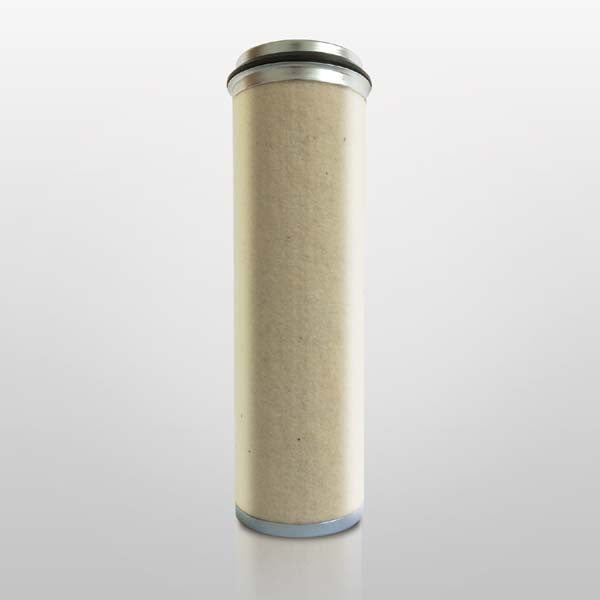

Intake Air Filter Element
