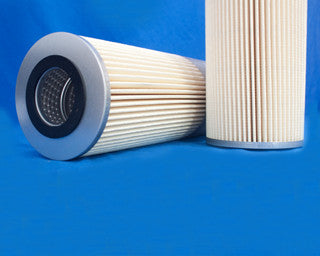

31888 - PTI   - Online Filter Supply Replacement Part # 97-02-0003
***Image may vary***

31888 - PTI - OFS # 97-02-0003

  • $16.99


MIN. ORDER 3



AVAILABILITY - Usually ships in 24-48 hours

Performance Data
Micron Rating: 10.00 NOMINAL

Beta Rating: N.A.

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 275 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Additional Notes: THIS UNIT IS DESIGNED IN ACCORDANCE WITH AN6235-3A.



Dimensional Specifications
Outer Diameter, Top: 1.70 IN (43.18 MM)

Outer Diameter, Bottom: 1.70 IN (43.18 MM)

Inner Diameter, Top: 0.88 IN (22.35 MM)

Inner Diameter, Bottom:

Length: 3.40 IN (86.36 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: EPOXY

Type of Endcap: ALUMINUM

Center Tube: SS SPRING

Type of Media: PAPER

Filter Area: 96 SQ.IN.

Plating: NONE

Outer Jacket: NONE - NONE

Configuration: SINGLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
