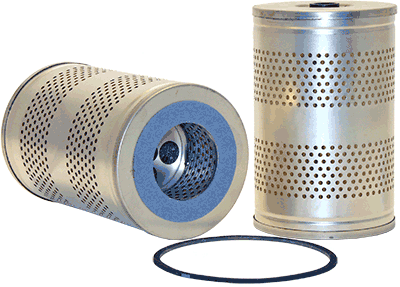

R2247P| Ryco | Pleated Paper Element OFS # 97-01-0397

PLEATED PAPER ELEMENT Usually ships in 24-48 hours Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  25.00 NOMINAL

Beta Rating:  N/A

Collapse Pressure Rating:  75 PSID

Maximum Temperature:  225 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Additional Notes:  VICKERS #922789

Dimensional Specifications
Outer Diameter, Top:  4.62 IN   (117.35 MM)

Outer Diameter, Bottom:  4.62 IN   (117.35 MM)

Inner Diameter, Top:  0.53 IN   (13.46 MM)

Inner Diameter, Bottom:  2.25 IN   (57.15 MM)

Length:  7.00 IN   (177.80 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA/VEL

Type of Adhesive:  PLASTISOL

Type of Endcap:  PLATED STEEL

Center Tube:  PLATED STEEL

Type of Media:  PAPER

Filter Area:  SQ.IN.

Plating:  ELECTROTIN PLATED

Outer Jacket:  YES - METAL

Configuration:  SINGLE OPEN WITH B/H

Packaging Specifications
Number per Carton:  12

Carton Weight:  15.00 LB   (6.80 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
