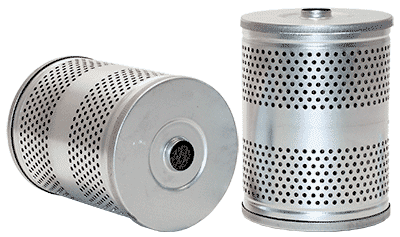

R2127| Ryco | Pleated Paper Element | OFS # 97-01-0913
Performance Data
Micron Rating: 0.00 NOMINAL
Beta Rating:
Collapse Pressure Rating:
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 4.54 IN (115.32 MM)
Outer Diameter, Bottom: 4.54 IN (115.32 MM)
Inner Diameter, Top: 0.88 IN (22.35 MM)
Inner Diameter, Bottom:
Length: 6.24 IN (158.50 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material:
Type of Adhesive:
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating:
Outer Jacket: YES
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 1.09 LB (0.49 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
