24844 | WIX | OFS # 97-01-2254

2 WEEK LEAD TIME.

2 ORDER MIN.

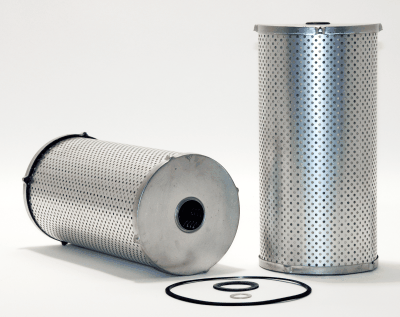

PLEATED PAPER ELEMENT

Lead Time: Please Call

Performance Data
Micron Rating: 20.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
Outer Diameter, Top: 4.50 IN (114.30 MM)

Outer Diameter, Bottom: 4.50 IN (114.30 MM)

Inner Diameter, Top: 1.00 IN (25.40 MM)

Inner Diameter, Bottom: 1.00 IN (25.40 MM)

Length: 9.63 IN (244.60 MM)

Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: N/A

Outer Jacket: YES - METAL

Configuration: DOUBLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 17.00 LB (7.71 KG)
