FA3643 | Permatic | Intake Air Filter Element

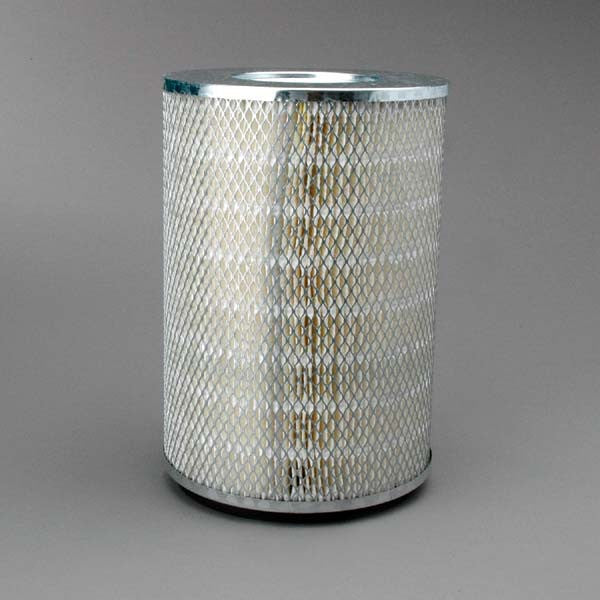

***Image may vary***

FA3643 | Permatic | OFS # 97-22-0102

  • $47.00


Usually Ships In 24-48 Hours

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: NOT RATED

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
Outer Diameter, Top: 9.21 IN (233.93 MM)

Outer Diameter, Bottom: 9.21 IN (233.93 MM)

Inner Diameter, Top: 0.67 IN (17.02 MM)

Inner Diameter, Bottom: 4.89 IN (124.21 MM)

Length: 13.38 IN (339.85 MM)

Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE OPEN END/BH



Packaging Specifications
Number per Carton: 1

Carton Weight: 5.30 LB (2.40 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**

Intake Air Filter Element
