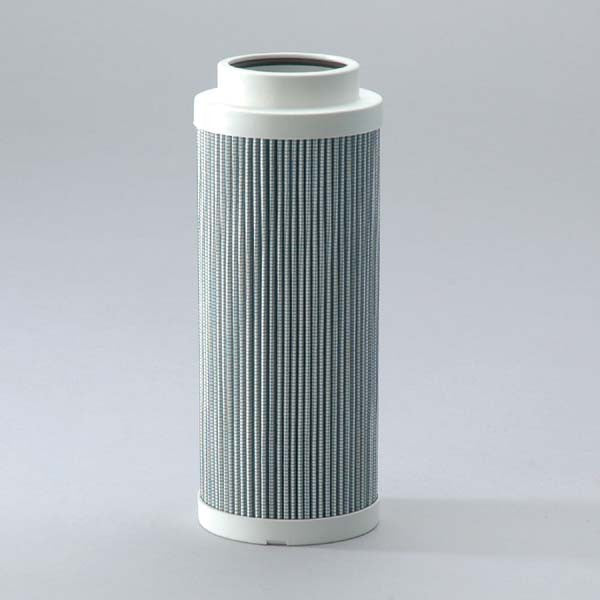

HC9604FMP13H | Pall Hydraulic | Pleated Microglass Element | OFS # 97-F9604-13K3B

PLEATED MICROGLASS ELEMENT Usually Ships In 24-48 Hours

Performance Data
Micron Rating:  3.00 ABSOLUTE

Beta Rating:  B3 = 200

Collapse Pressure Rating:  150 PSID

Maximum Temperature:  250 F

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  50 PSID

Dimensional Specifications
Outer Diameter, Top:  3.16 IN   (80.26 MM)

Outer Diameter, Bottom:  3.16 IN   (80.26 MM)

Inner Diameter, Top:  2.00 IN   (50.80 MM)

Inner Diameter, Bottom:

Length:  13.00 IN   (330.20 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:  BUNA-N

Type of Adhesive:  EPOXY

Type of Endcap:  PLATED STEEL

Center Tube:  CORELESS

Type of Media:  MICROGLASS

Filter Area:  SQ.IN.

Plating:  ZINC PLATED

Outer Jacket:  NONE

Configuration:  SINGLE OPEN END

Packaging Specifications
Number per Carton:  12

Carton Weight: **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
