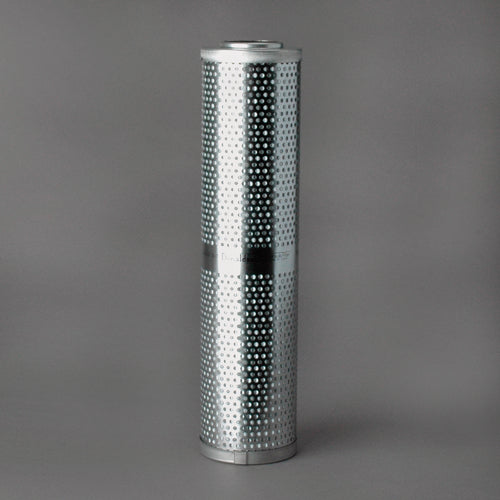

HC9600FKN13Z | PALL HYDRAULIC | ofs#: 97-F9600-13K6V
Usually ships in 24-48 hours
Performance Data
Micron Rating: 6.00 ABSOLUTE
Beta Rating: B6 = 200
Collapse Pressure Rating: 150 PSID
Maximum Temperature: 275 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Dimensional Specifications
Outer Diameter, Top: 3.10 IN (78.74 MM)
Outer Diameter, Bottom: 3.10 IN (78.74 MM)
Inner Diameter, Top: 1.72 IN (43.69 MM)
Inner Diameter, Bottom:
Length: 13.00 IN (330.20 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: VITON
Type of Adhesive: EPOXY
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: 850 SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG)
Primary Cross References Donaldson P166254, Transmission Filter, Cartridge And Donaldson P566216, Hydraulic Filter, Cartridge DT.
Alternate Parts
| Donaldson Number | Product | Note: |
|---|---|---|
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic 12 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic 8 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic <4 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic 23 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic 12 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic 5 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE DT | DT Synteq Synthetic <4 µm βₓ(c) = 1000 | |
| HYDRAULIC FILTER, CARTRIDGE | Standard Version |
**All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
