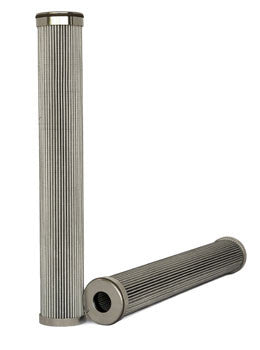

ONLINE FILTER SUPPLY | Replacement # 97-05-3136

Performance Data
Micron Rating: 6.00 ABSOLUTE

Beta Rating: N/A

Collapse Pressure Rating: 150 PSID

Maximum Temperature: 250 F

Direction of Flow: INSIDE->OUT

Dimensional Specifications
Outer Diameter, Top: 2.12 IN (53.85 MM)

Outer Diameter, Bottom: 2.12 IN (53.85 MM)

Inner Diameter, Top: 0.95 IN (24.13 MM)

Inner Diameter, Bottom:

Length: 8.76 IN (222.50 MM)

Thread: N/A

Physical Specifications
Handle: NONE

Seal Material: VITON

Type of Adhesive: EPOXY

Type of Endcap: STEEL/ALUMINUM

Center Tube: CORELESS

Type of Media: GLASS/GLASS

Filter Area: N/A

Plating: N/A

Outer Jacket: NONE

Configuration: SINGLE OPEN END

Packaging Specifications
Number per Carton: 1

Carton Weight: 1.10 LB (0.50 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
