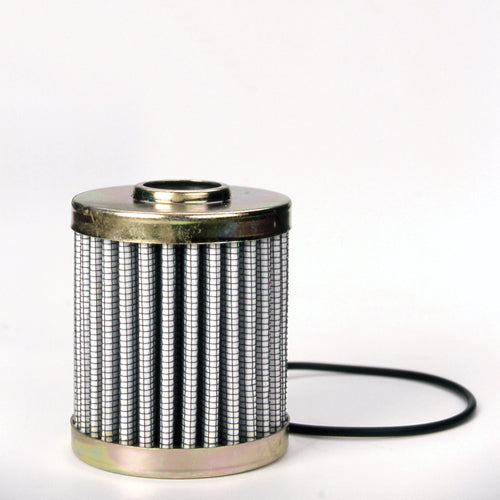

PFA370-8-3G-V : 97-05-0120
Performance Data
Micron Rating: 3.00 ABSOLUTE
Beta Rating: B3=200
Collapse Pressure Rating: 250 PSID
Maximum Temperature: 250 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 50 PSID
Additional Notes: GLASS MEDIA SCREENED ON INSIDE AND OUTSIDE OF PLEAT.
Dimensional Specifications
Outer Diameter, Top: 3.70 IN (93.98 MM)
Outer Diameter, Bottom: 3.70 IN (93.98 MM)
Inner Diameter, Top: 1.90 IN (48.26 MM)
Inner Diameter, Bottom:
Length: 7.80 IN (198.12 MM)
Thread: NONE
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: EPOXY
Type of Endcap: STEEL
Center Tube: PLATED STEEL
Type of Media: MICROGLASS
Filter Area: SQ.IN.
Plating: ZINC PLATED
Outer Jacket: NONE
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 2.00 LB (0.91 KG) **All Online Filter Supply replacement parts are "equivalent" to or "interchangeable" with original manufacture parts, Names and part # used for cross reference only.**
