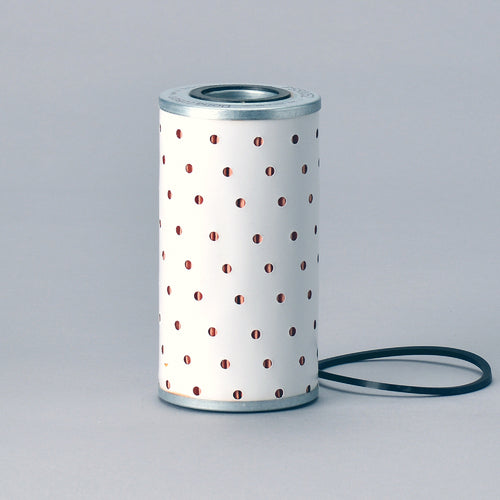

1495705 | Ford | Pleated Paper Element | OFS # 97-01-0348
***Image may vary***

1495705 | Ford | Pleated Paper Element | OFS # 97-01-0348

  • $8.14


In Stock

Performance Data
Micron Rating: 25.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: 75 PSID

Maximum Temperature: 225 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID



Dimensional Specifications
(A) Outer Diameter, Top: 2.75 IN (69.85 MM)

(B) Outer Diameter, Bottom: 2.75 IN (69.85 MM)

(C) Inner Diameter, Top: 1.31 IN (33.27 MM)

(D) Inner Diameter, Bottom: 1.31 IN (33.27 MM)

(E) Length: 5.33 IN (135.38 MM)

(F) Thread: NONE



Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL

Center Tube: PLATED STEEL

Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - PAPER

Configuration: DOUBLE OPEN END



Packaging Specifications
Number per Carton: 1

Carton Weight: 4.30 LB (1.95 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangable with original manufacture parts, Names and part # used for cross reference only.***
