1419455 | Ford | OFS # 97-22-0483

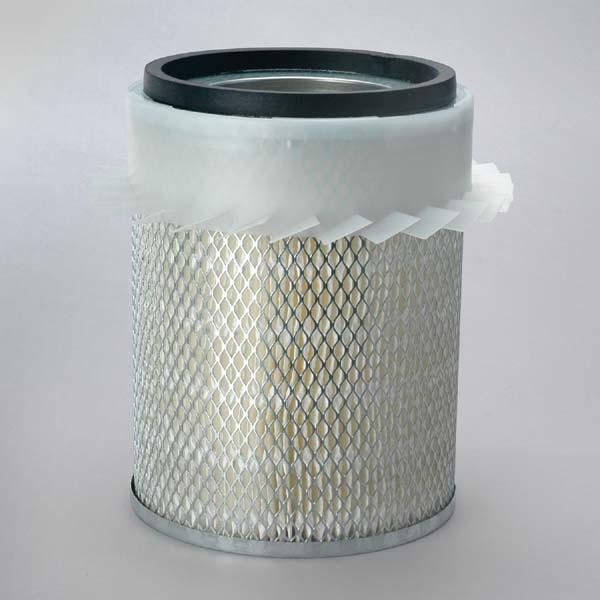

***Image may vary***

1419455 | Ford | OFS # 97-22-0483

  • $35.67

Performance Data
Micron Rating: 15.00 NOMINAL

Beta Rating: N/A

Collapse Pressure Rating: N/A

Maximum Temperature: 250 F

Direction of Flow: OUTSIDE->IN

Recommended Changeout Differential Pressure: 20 PSID

Dimensional Specifications
(A) Outer Diameter, Top: 10.08 IN (256.03 MM)

(B) Outer Diameter, Bottom: 7.93 IN (201.42 MM)

(C) Inner Diameter, Top: 3.60 IN (91.44 MM)

(D) Inner Diameter, Bottom: 0.54 IN (13.72 MM)

(E) Length: 10.56 IN (268.22 MM)

(F) Thread: NONE

Physical Specifications
Handle: NONE

Seal Material: BUNA-N

Type of Adhesive: PLASTISOL

Type of Endcap: PLATED STEEL


Type of Media: PAPER

Filter Area: SQ.IN.

Plating: NONE

Outer Jacket: YES - METAL

Configuration: SINGLE/BOLT /FINS

Packaging Specifications
Number per Carton: 1

Carton Weight: 3.90 LB (1.77 KG) ***All Online Filter Supply replacement parts are equivalent to or interchangable with original manufacture parts, Names and part # used for cross reference only.***
