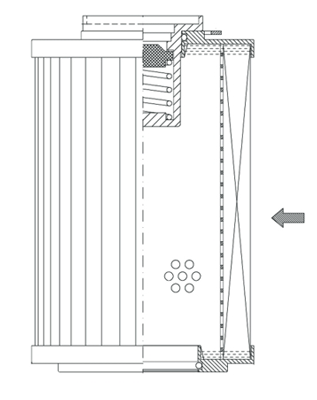

R20C25CB| Napa | Filter Element | OFS # 97-28-5628

Performance Data
Micron Rating:  27.00

Beta Rating:

Collapse Pressure Rating:

Maximum Temperature:

Direction of Flow:  OUTSIDE->IN

Recommended Changeout Differential Pressure:  20 PSID

Dimensional Specifications
Outer Diameter, Top:  3.74 IN   (95.00 MM)

Outer Diameter, Bottom:  3.74 IN   (95.00 MM)

Inner Diameter, Top:  1.61 IN   (40.89 MM)

Inner Diameter, Bottom:  1.61 IN   (40.89 MM)

Length:  7.99 IN   (202.95 MM)

Thread:  NONE

Physical Specifications
Handle:  NONE

Seal Material:

Type of Adhesive:

Type of Endcap:  PLATED STEEL

Center Tube:

Type of Media:

Filter Area:  SQ.IN.

Plating:

Outer Jacket:  NONE

Configuration:  DOUBLE OPEN END

Packaging Specifications
Number per Carton:  1

Carton Weight:  1.90 LB   (0.86 KG) ***All Online Filter Supply replacement products are equivalent to or interchangeable with original manufacture parts***
