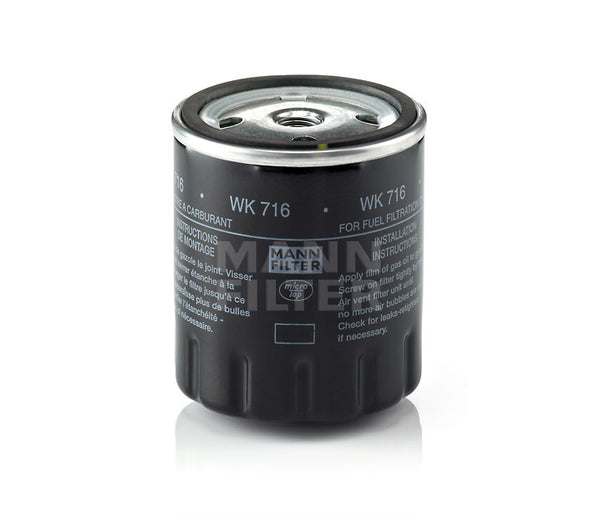

WK716 | MANN & HUMMEL | Fuel Spin-on Filter Element | OFS # 97-15-1661
Online Filter Supply LLC, offers a wide range of MANN & HUMMEL, Spin-on Fuel Filter Elements for 1000s of different applications and all of our OFS replacements either meet or exceed the over the quality of all of our OEM partners.
Performance Data
Micron Rating: 15.00 NOMINAL
Beta Rating: N/A
Collapse Pressure Rating: 75 PSID
Maximum Temperature: 225 F
Direction of Flow: OUTSIDE->IN
Recommended Changeout Differential Pressure: 20 PSID
Dimensional Specifications
Outer Diameter, Top: 3.05 IN (77.47 MM)
Outer Diameter, Bottom: 3.05 IN (77.47 MM)
Inner Diameter, Top:
Inner Diameter, Bottom:
Length: 3.49 IN (88.65 MM)
Thread: M14 X 1.5-6H
Physical Specifications
Handle: NONE
Seal Material: BUNA-N
Type of Adhesive: PLASTISOL
Type of Endcap: PLATED STEEL
Center Tube: PLATED STEEL
Type of Media: PAPER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: YES - METAL
Configuration: SINGLE OPEN END
Packaging Specifications
Number per Carton: 1
Carton Weight: 8.50 LB (3.86 KG)
